The Significance of Generator Principles and DC Machine Theory

Generators, as the name suggests, are devices that convert mechanical energy into electrical energy. They are the workhorses behind power plants, wind turbines, and countless other applications where electricity generation is crucial. By utilizing the phenomenon of electromagnetic induction, generators create electrical currents in conductors when subjected to a changing magnetic field. This principle, discovered by Michael Faraday and later mathematically described by James Clerk Maxwell, forms the basis for the director of the generator action.

A converter used to incessantly transform electrical energy to mechanical energy or the other way around is called an electric machine. The method of conversion is understood as automatic device energy conversion.

An electrical machine is thus a link between an electrical system network and a machine-driven system. In this machine, the conversion is revocable. If the transformation is mechanical to electrical energy, the machine is alleged to perform as a generator. If the transformation is from electrical to Mechanical power, the machine is suspected to act as a motor. The above diagram represents both the motor and generator conversion action.

Working Principle and Construction of DC Generator

In these machines, the transformation of power from electrical to mechanical forms or the other way around results from the subsequent two magnetic force phenomena:

• Emf is induced within the conductor once a conductor moves in a magnetic field. This action is called a Generator action.

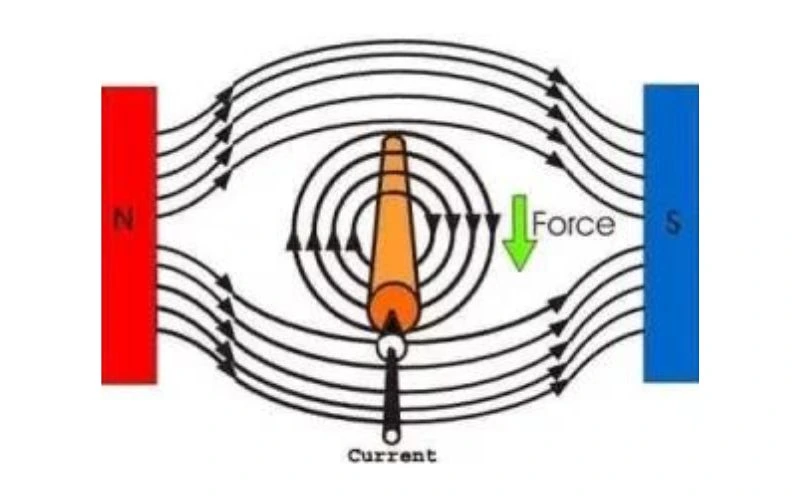

• Once a current-carrying conductor is placed in a magnetic field, the conductor – experiences a mechanical force. This action is called Motor acting.

These two effects occur simultaneously when energy transformation occurs from mechanical to electrical or electrical to mechanical. In driving action (motoring), the electrical system creates current flow over conductors engaged within the magnetic fields. A force is made on every conductor. If the conductors are placed on a structure liberal to rotate, a magnetic torque creates a revolving structure that revolves at a certain speed. If the conductors rotate in a magnetic field, every conductor will induce a voltage. In generating action, the method is reversed. In this case, the revolving structure, the rotor is driven by a prime mover. A voltage will be induced in the conductors spinning with the rotor. If an electrical load is connected in the winding shaped by these conductors, a current can flow, delivering power to the load. Moreover, this passing over the conductor can move with the magnetic field to supply a reaction torque, which tends to oppose the force (torque) the prime mover applies.

What is a DC Machine?

A DC machine, short for a Direct Current machine, is an electromechanical device that converts electrical energy into mechanical energy (motors) or vice versa (generators). It operates on the principle of Faraday’s Law of electromagnetic induction and is widely used in various industries and applications.

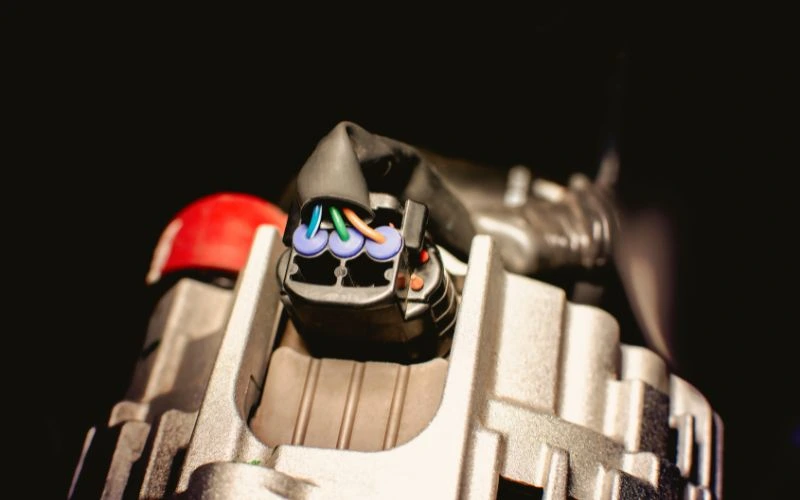

Types of DC Machines

There are two main types of DC Machines: DC generators and DC motors.

DC Generators

DC generators, as the name suggests, are devices that convert mechanical energy into electrical energy. They operate based on the principle of electromagnetic induction, where a conductor moving through a magnetic field generates a voltage. This voltage is direct current, hence the name “DC generator.”

DC Motors

DC motors, on the other hand, are devices that convert electrical energy into mechanical energy. They operate based on the interaction between magnetic fields and electric currents. When current flows through the coils of a DC motor, it generates a magnetic field that interacts with a fixed magnetic field, causing the motor to rotate.

Components of DC Machines

DC machines comprise key components like the armature, field windings, and commutator with brushes. These parts work together to enable efficient energy conversion.

Armature

The armature is a core component of DC machines in generators and motors. It consists of a coil of wire wound around a core. The armature rotates within the magnetic field, facilitating the conversion of electrical energy into mechanical energy (motors) or vice versa (generators).

Field Windings

Field windings create the magnetic field within a DC machine. In generators, they are connected to an external DC power source, making the magnetic field induce a voltage in the armature. Field windings interact with the armature current in motors to produce mechanical motion.

Commutator and Brushes

Commutators are split rings attached to the armature shaft, while brushes are stationary conductive elements that maintain electrical contact with the commutator. The commutator reverses the current direction in the armature windings, ensuring continuous rotation in motors and unidirectional current in generators.

Operating Principles of DC Machines

Faraday’s Law of Electromagnetic Induction

Faraday’s Law of electromagnetic induction states that when a conductor moves through a magnetic field or changes in magnetic flux through a conductor, an electromotive force (EMF) is induced in the conductor. This principle forms the foundation of DC generators.

Lorentz Force Law

The Lorentz Force Law explains how a current-carrying conductor placed in a magnetic field experiences a force perpendicular to the current direction and the magnetic field lines. This force drives the rotation of the armature in DC motors.

Right-Hand Rule

The right-hand rule is a fundamental concept in DC machine theory. It helps determine the direction of motion or induced current by using the right hand’s thumb, index finger, and middle finger to determine the magnetic field, current flow, and force direction.

Applications of DC Machines

DC machines find applications in various industries and fields, including:

• Automotive Industry: DC motors power electric windows, windshield wipers, and vehicle cooling fans.
• Industrial Machinery: DC motors are used in conveyor belts, elevators, and machine tools.
• Renewable Energy: DC generators are used in small-scale wind turbines and hydroelectric generators.
• Aerospace: DC motors are used in actuators for control surfaces in aircraft.
• Medical Equipment: Some medical devices, like MRI machines, use DC motors for precise control.

Conclusion

FAQs

How does a DC generator work?

A DC generator works on the principle of electromagnetic induction. When a conductor (the armature) rotates within a magnetic field created by field windings, it generates a voltage due to Faraday’s Law. This voltage is generated as direct current, which can be used as electrical power.

What are the main differences between DC motors and AC motors?

The primary difference is in the type of current they use. DC motors operate on direct current, while AC motors operate on alternating current. Additionally, DC motors are known for better speed control, while AC motors are generally more efficient for high-power applications.

Are DC machines still relevant in today’s technology landscape?

DC machines are still relevant, especially in applications where precise speed control, simplicity, and reliability are crucial. They continue to be used in various industries, and technological advancements have led to improved performance and reduced maintenance requirements.
